Rail Hole Puncher

RAILMAN Products

Rail Hole Puncher

Punches holes in rails simply and speedily!
Slides make these devices easy to operate.
ISHIDA rail hole punchers are popular throughout the world, including developing nations.

Spec

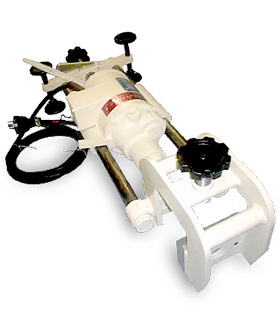

Electric Rail Hole Puncher IDL-100

Model IDL-100 (electric)
Electric power Three-phase induction motor
Rated voltage: 200V(50Hz) 220V(60Hz)
Rated power: 200V(50Hz) 220V(60Hz)
Rated revolutions: 1500rpm(50Hz)
1800rpm(60Hz)
Total length Minimum 802 mm
Total height 275mm
Weight About 30 kg
Drill revolutions 120rpm〔50Hz〕 145rpm〔60Hz〕
Punching capacity Maximum drill size ‎Ø 32 mm
Total width 340mm
Cab tire cable 3m

Download product catalog

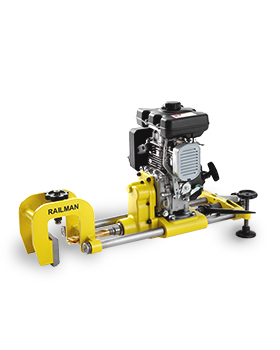

Engine-powered Rail Hole Puncher IEL-140

Model IEL-140 (engine powered)
Power 4-cycle air-cooled single cylinder gasoline engine
Continuous rated output: 1.4PS/3600rpm
Maximum output: 2PS/4200rpm
Total length Minimum 802 mm
Total height 275mm
Weight About 34 kg
Drill revolutions 120rpm〔50Hz〕 145rpm〔60Hz〕
Punching capacity Maximum drill size ‎Ø 32 mm
Total width 340mm

Download product catalog
