CA Mortar Excavator

RAILMAN Products

CA Mortar Excavator

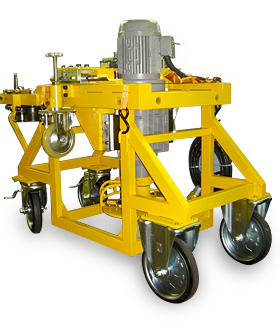

This machine is used to dig up and safely remove deteriorated concrete and asphalt when repairing ballastless track.

Structure

The welded construction is made with gear teeth to operate on light power. The rail-grabbing part, which holds the long operation handles that prevent the operator from having to work in difficult positions, and the opposite side of the rail-grabbing part have a vertical-motion function that make it possible to do parallel frame adjustments and support the weight of the equipment. RAILMAN has added castors for simpler horizontal movement during excavation.

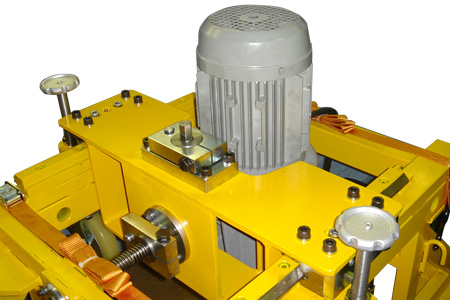

The excavation rotation device connects the spindle head, gear reduction unit, and the 3-phase induction motor for a highly durable body construction. The tip of the spindle has a blade holder that allows for quick and easy blade replacements. The body is supported by an LM guide on a slide base, which can be adjusted forwards or back with a feed screw, and then locked securely in place when blade replacement is complete.

Spec
Model CA Mortar Excavator
Electric power Three-phase totally enclosed fan-cooled induction motor with end cover
Output 1.5kW
Total length 1100mm
Total width 780mm
Total height 800mm
Weight Body: 120 kg
Transport car: 50 kg
No. poles 4
Voltage Three-phase alternating current 200-220V
Frequency 50/60Hz
No. spindle rotations 120rpm (50Hz)
145rpm (60Hz)
Cutting depth Standard 100 mm
Standard blade thickness 34 mm
Excavation capacity Approx. 1.7 m per minute
