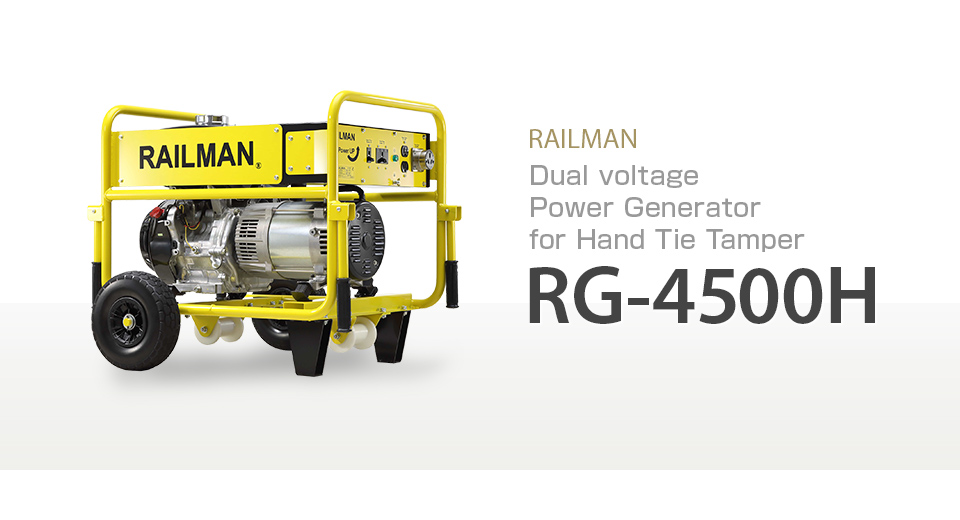

Next-generation 200V Power Generator for Hand Tie Tamper

Air Cleaner standard equipmentt and, low price.
Railway Track Maintenance for Southeast Asia. More Power Generator.

Product Features
IT-450E maximum 5 units use at the same time.
ST-200B maximum 11 units use at the same time.
Spec
Model RG-3500 RG-4100
Generator Phase 3 single 3 single
Maximum AC Output(kVA) 3.5 1.16 4.1 1.35
Voltage(V) 200 115 200 115
AMP(A) 10.1 10.1 11.8 11.8
Frequency(Hz) 50 60
Power factor 0.8 1.0 0.8 1.0
Revolution(rpm) 3,000 3,600
excitation Self-excitation

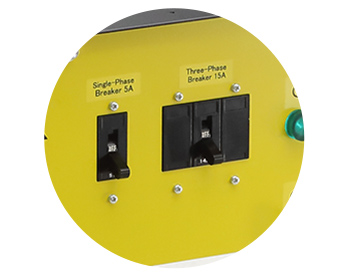

Overcurrent protection No fuse breaker
Engine Model SUBARU EX27D
Power(kW/min-1) 4.4/3,000 5.1/3,600
Displacement(ml) 265
Starting System Recoil starter
Fuel Gasoline
Tank capacity(ml) 12.8
Binding mode Direct connection
Continuous rated operation time(h) 5.5 4.5
Dimensions L × W × H mm 650×490×735
Noise Level [dB(A)/7m] 68 71
Dry Weight(kg) 75
Combination
With Hand Tie Tamper

ST-200B ×10 unit
or

IT-450E×5 unit

ST-200B ×11 unit
or

IT-450E×5 unit

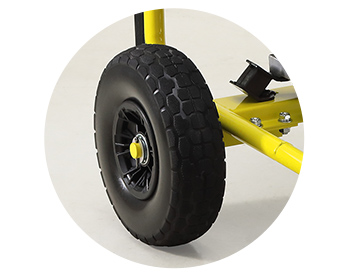

Characteristic ‎Lightweight and, With transport wheels
Low Oil Shutdown
Voltmeter

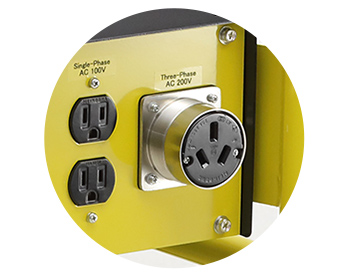

Single phase115V Outlets×2
