RAILMAN Products

Multi-outlet Extension Devices

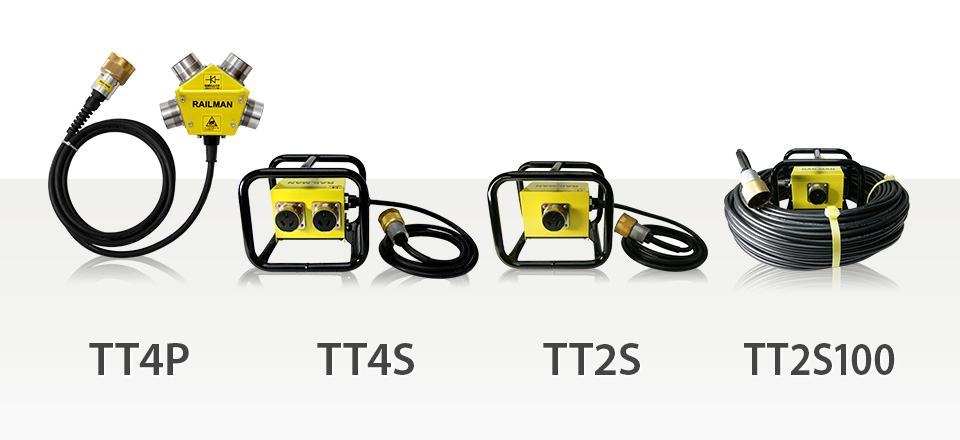

The short-circuit proof multi-outlet extension device series
The pentagon-shaped device for work efficiency, the pipe-frame type for outlet protection. Stainless steel outlets have long service lives.

Product Features

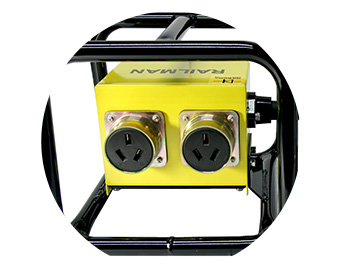

Stainless steel outlets

RAILMAN has developed the first stainless steel outlets in the industry. Service life is much longer than conventional devices, and lines are swaged with built-in terminals for easier maintenance and repairs. Stainless steel keeps screws from corroding and the entire device is extremely durable.

Equipped with Short-circuit-proof Diodes

Prevents short-circuit accidents on rails that occur when equipment touches the rails between earths. A built-in element prevents countercurrents to protect railway maintenance equipment from short-circuiting.

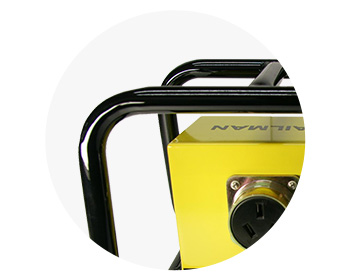

Tough, Multi-purpose Pipe Frame

Powerful protection of outlets from ballast.
By protecting the screws of outlets, which typically suffer severe damage, there is less need for outlet repair and replacement, resulting in dramatically lower running costs. The pipe frame also keeps the outlet box off the ground, keeping water out during inclement weather.

Spec

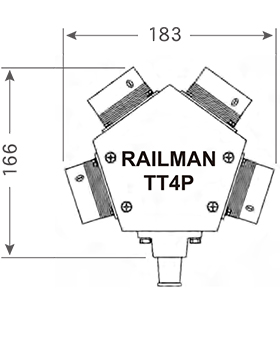

Model TT4P
Outlets 4
Cable length 3 meters
Rated current 15A
Rated voltage 3-phase electric power 200-220V
IP Code IP 20 compliant
Ambient temperature -30℃ to 40℃
Relevant standard JIS8282-1:2010
Use environments Indoors and outdoors
Weight 2.6 kg

Download product catalog

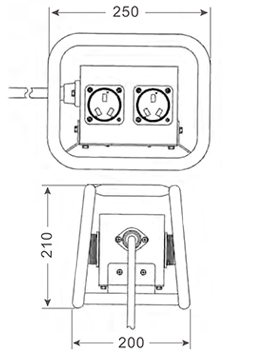

Model TT4S TT2S TT2S100
Power outlets 4 2 2
Cable length 3m 3m 100m
Rated current 15A
Rated voltage 3-phase electric power 200-220V
IP Code IP 20 compliant
Ambient temperature -30℃ to 40℃
Relevant standard JIS8282-1:2010
Use environment Indoors and outdoors

Download product catalog
